Pressure Seal Globe Valve
Pressure Seal Globe Valve Product introduction
Pressure Seal Globe Valve is OS&Y,Rising stem,Plug Disc Pressure sealing Bonnet (PSB),Threaded or welded seating.
Pressure Seal Globe ValveType: Through way type , Y type Globe valve, and Angle Type globe valve, OS&Y, Rising Stem .
Disc: Plug type disc, regulating disc(throttling disc) ,regular disc,
Bonnet : Pressure seal bonnet (PSB)
Sear Ring:Rrenewable seat ring seat ring , welded seat ring or Integral Seat
Type of connection:Raised Face flange (RF) , RING TYPE JOINT FLANGE(RTJ), Butt welding ends (BW) ASME B16.25
Pressure Seal Globe ValveTypeMaterial:
Carbon Steel: A216 WCB,ASTM A105
Stainless Steel: A351 CF8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Alloy Steel:Monel 400, monel k500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C
Duplex Stainless Steel: A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M,A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310
Low temperature steel: A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB) Gunmetal: B148 C95500,C95800,C95400,B62, C83600,B61,B62 C92200, B150 C63200
DIN Material: GS-C25,1.0619 1.4408, 1.4308,C22.8
Pressure Seal Globe ValveType Operated type: Hand wheel , Gear Operated, Pneumatic Operated, Electric Operated, Impact Hand wheel Operated or Bare stem with ISO5210 top mounting pad for actuator etc.

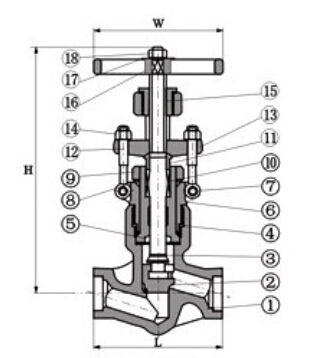

Pressure Seal Globe Valve Main connection dimensions
|
NO.
|
Part name
|
WCB
|
LCB
|
WC6
|
WC9
|
|
08
|
Stud and nut
|
A193 Gr B7/A194 Gr 2H
|
A193 Gr B7/A194 Gr 4
|
A193 Gr B16/A194 Gr 4/7
|
A193 Gr B16/A194 Gr 4/7
|
|
07
|
Gland packing
|
Graphite
|
Graphite
|
Graphite
|
Graphite
|
|
06
|
Gasket
|
Soft lron
|
Soft lron
|
Ss304
|
Ss304
|
|
05
|
Thrust ring
|
A105
|
A182 F304
|
A182 F11
|
A182 F22
|
|
04
|
Back up ring
|
A105
|
A182 F304
|
A182 F11
|
A182 F22
|
|
03
|
Yoke
|
A216 Gr WCB
|
A352 Gr LCB
|
A271 Gr WC6
|
A271 Gr WC9
|
|
02
|
Bonnet
|
A216 Gr WCB
|
A352 Gr LCB
|
A271 Gr WC6
|
A271 Gr WC9
|
|
01
|
Body
|
A216 Gr WCB
|
A352 Gr LCB
|
A271 Gr WC6
|
A271 Gr WC9
|
|
NO.
|
Part name
|
C5
|
C12
|
CF8
|
CF8M
|
|
08
|
Stud and nut
|
A193 Gr B16/A194 Gr 4/7
|
A193 Gr B16/A194 Gr 4/7
|
A193 Gr B7/A194 Gr 2H
|
A193 Gr B7/A194 Gr 2H
|
|
07
|
Gland packing
|
Graphite
|
Graphite
|
Graphite
|
Graphite
|
|
06
|
Gasket
|
Ss304
|
Ss304
|
Ss304
|
Ss316
|
|
05
|
Thrust ring
|
A182 F22
|
A182 F22
|
A182 F304
|
A182 F316
|
|
04
|
Back up ring
|
A182 F22
|
A182 F22
|
A182 F304
|
A182 F316
|
|
03
|
Yoke
|
A216 Gr C5
|
A217 Gr C12
|
A351 Gr CF8
|
A351 Gr CF8M
|
|
02
|
Bonnet
|
A216 Gr C5
|
A217 Gr C12
|
A351 Gr CF8
|
A351 Gr CF8M
|
|
01
|
Body
|
A216 Gr C5
|
A217 Gr C12
|
A351 Gr CF8
|
A351 Gr CF8M
|
Pressure Seal Globe Valve Main dimension
CLASS 600~2500 PRESSURE SEALING GLOBE VALVE
|
PRESSURE SEALING GLOBE VALVE Dimensions
|
||||||||||
|
Class 600
|
||||||||||
|
Size
|
inch
|
2
|
2-1/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
|
L-L1
|
mm
|
292
|
330
|
356
|
432
|
508
|
559
|
660
|
787
|
838
|
|
L1-SP
|
mm
|
178
|
216
|
254
|
305
|
381
|
457
|
584
|
711
|
813
|
|
H
|
mm
|
510
|
610
|
610
|
725
|
800
|
1010
|
1180
|
1360
|
1780
|
|
K
|
mm
|
250
|
300
|
300
|
350
|
500
|
550
|
600
|
600
|
400 ?ont
|
|
WT
|
Kg
|
38
|
65
|
105
|
105
|
185
|
230
|
410
|
615
|
895
|
|
PRESSURE SEALING GLOBE VALVEDimensions
|
||||||||||
|
Class 900
|
||||||||||
|
Size
|
inch
|
2
|
2-1/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
|
L-L1
|
mm
|
368
|
419
|
381
|
457
|
559
|
610
|
737
|
838
|
965
|
|
L1-SP
|
mm
|
225
|
254
|
305
|
365
|
432
|
508
|
660
|
787
|
914
|
|
H
|
mm
|
550
|
580
|
675
|
750
|
815
|
1085
|
1300
|
1420
|
1825
|
|
K
|
mm
|
300
|
350
|
350
|
500
|
500
|
350 ?ont
|
350 ?ont
|
400 ?ont
|
450 ?ont
|
|
WT
|
Kg
|
70
|
85
|
105
|
130
|
255
|
315
|
670
|
925
|
1200
|
|
PRESSURE SEALING GLOBE VALVE Dimensions
|
|||||||||
|
Class 1500
|
|||||||||
|
Size
|
inch
|
2
|
2-1/2
|
3
|
4
|
5
|
6
|
8
|
10
|
|
L-L1
|
mm
|
368
|
419
|
470
|
546
|
673
|
705
|
832
|
991
|
|
L1-SP
|
mm
|
216
|
254
|
305
|
405
|
483
|
559
|
711
|
864
|
|
H
|
mm
|
565
|
580
|
380
|
800
|
825
|
1130
|
1450
|
1535
|
|
K
|
mm
|
300
|
350
|
400
|
450
|
500
|
600
|
450 ?ont
|
500 ?ont
|
|
WT
|
Kg
|
80
|
90
|
115
|
160
|
300
|
410
|
650
|
1150
|
|
PRESSURE SEALING GLOBE VALVE Dimensions
|
|||||||||
|
Class 2500
|
|||||||||
|
Size
|
inch
|
2
|
2-1/2
|
3
|
4
|
5
|
6
|
8
|
10
|
|
L-L1
|
mm
|
451
|
508
|
578
|
673
|
794
|
914
|
1022
|
1270
|
|
L1-SP
|
mm
|
279
|
330
|
368
|
457
|
533
|
610
|
762
|
914
|
|
H
|
mm
|
575
|
605
|
725
|
835
|
875
|
1200
|
1510
|
1720
|
|
K
|
mm
|
350
|
350
|
350 ?ont
|
400 ?ont
|
400 ?ont
|
400 ?ont
|
450 ?ont
|
550 ?ont
|
|
WT
|
Kg
|
95
|
110
|
125
|
210
|
565
|
615
|
1050
|
1525
|
Keywords: Pressure sealing Globe Valve, High pressure globe valve, high temperature globe valves Manufacturer& Supplier- RF/RTJ/(Butt welded) BW ends/PSB bonnet /ASME B16.34
