Cast iron lug type butterfly valve
Cast iron lug type butterfly valve Product introduction
Cast iron lug type butterfly valve

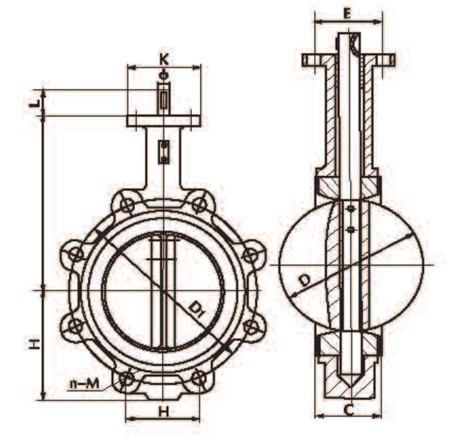

Cast iron lug type butterfly valve Main dimension
|
DN
|
L
|
H
|
HO
|
A
|
B
|
0.6MPa
|
1.0MPa
|
1.6MPa
|
|||
|
DO
|
n-d
|
DO
|
n-d
|
DO
|
n-d
|
||||||
|
50
|
43
|
63
|
235
|
270
|
110
|
110
|
4-14
|
125
|
4-18
|
125
|
4-18
|
|
65
|
46
|
70
|
250
|
270
|
110
|
130
|
4-14
|
145
|
4-18
|
145
|
4-18
|
|
80
|
46
|
83
|
275
|
270
|
110
|
150
|
4-18
|
160
|
8-18
|
160
|
8-18
|
|
100
|
52
|
105
|
316
|
270
|
110
|
170
|
4-18
|
180
|
8-18
|
180
|
8-18
|
|
125
|
56
|
115
|
340
|
310
|
110
|
200
|
8-18
|
210
|
8-18
|
210
|
8-18
|
|
150
|
56
|
137
|
376
|
310
|
110
|
225
|
8-18
|
240
|
8-22
|
240
|
8-22
|
|
200
|
60
|
164
|
430
|
353
|
150
|
280
|
8-18
|
295
|
8-22
|
295
|
8-22
|
|
250
|
68
|
206
|
499
|
353
|
150
|
335
|
12-18
|
350
|
12-22
|
355
|
12-26
|
|
300
|
78
|
230
|
570
|
380
|
150
|
395
|
12-22
|
400
|
12-22
|
410
|
12-26
|
