large rubber lined butterfly valve
large rubber lined butterfly valve Product introduction
large rubber lined butterfly valve is used in on-off and control flow of medium in vaired pipelines such as foodstuff,beverage,machine,chemical engineering,industrial enviromental proction,water treatment and building ect .large rubber lined butterfly valve: ANSI, DIN, JIS, GB, etc
More Structure: Soft Seat Sealing ( Or metal seat sealing).
More Structure: Soft Seat Sealing ( Or metal seat sealing).
large rubber lined butterfly valve Material :
1 Body : Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200;
Ductile Iron:ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15;
Stainless Steel: ASTM A351 CF8, CF8M;Carbon Steel: ASTM A216 WCB
2 Stem: Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM
A582 Type 416;
3 Taper Pin : Stainless Steel: ASTM A276 Type 304, Type 316;
4 Seat : NBR, EPDM, Neoprene, PTFE, Viton;
5 Disc : Ductile Cast Iron (Nickel plated):ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS- 400,Stainless Steel:ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501;
AL-Bronze: ASTM B148 C95400;
6 O-Ring: NBR, EPDM
7 Bushing :Polymer water-proof materials ,Nylon, Bronze;
1 Body : Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200;
Ductile Iron:ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15;
Stainless Steel: ASTM A351 CF8, CF8M;Carbon Steel: ASTM A216 WCB
2 Stem: Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM
A582 Type 416;
3 Taper Pin : Stainless Steel: ASTM A276 Type 304, Type 316;
4 Seat : NBR, EPDM, Neoprene, PTFE, Viton;
5 Disc : Ductile Cast Iron (Nickel plated):ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS- 400,Stainless Steel:ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501;
AL-Bronze: ASTM B148 C95400;
6 O-Ring: NBR, EPDM
7 Bushing :Polymer water-proof materials ,Nylon, Bronze;
large rubber lined butterfly valve Technical parameters
| Description | Standard |
| Design and manufacture | EN593 |
| Face to face | ISO5752 series14, EN558-1 series 14, DIN3202 F4 |
| Flange and drilling | ISO7005-2, EN1092, |
| Pressure test | EN12266 |
| Top flange of bare shaft valve | ISO5211 |
| Top flange on worm gearbox for e-actuator | ISO5210 |

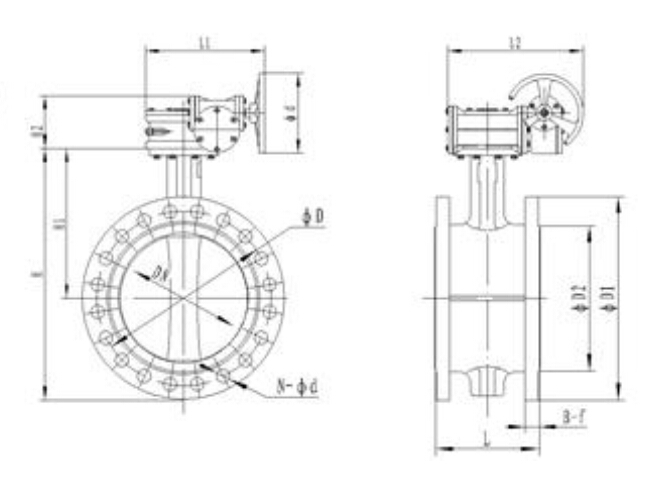

large rubber lined butterfly valve Main connection dimensions
| Name | Material |
| Body | ductile cast iron, WCB, stainless steel |
| Disc | ductile cast iron, WCB, stainless steel, Al-bronze |
| Stem | SS420, SS431 |
| Disc seat ring | EPDM,NBR,VITON |
| Body seat ring | SS304 |
| Retainer | SS304, SS316 |
| Shaft bearing | Al-bronze, self-lubricating bearing |
| Bolt & nuts | 8.8 grade galvanized, SS304 |
| Coating | epoxy coating, thickness: min. 250 microns, color code: RAl5015, 5017, 5010, and etc. |
