Z61H A105 gate valve SW connection Product introduction

Z61H A105 gate valve SW connection

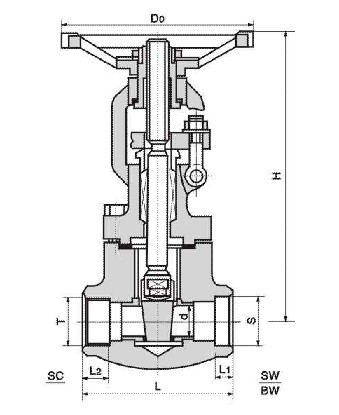

Z61H A105 gate valve SW connection Main connection dimensions





Z61H A105 gate valve SW connection Main dimension



DN Dimension
L d S L1 T L2 H D0
 Z61H-16C   Z61H-25   Z61H-40
15 90 13 22.5 10 1 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 120 28 43 14 1 1/4 21 201 166
40 135 36 49 15 1 1/2 21 227 180
50 155 45 61 16 2 25 253 180
 Z61H-64
15 90 13 22.5 10 1/2 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 130 28 43 14 1 1/4 21 212 180
40 150 36 49 15 1 1/2 21 231 180
50 155 45 61 16 2 25 253 180
Z61H-100
15 90 13 22.5 10 1/2 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 130 28 43 14 1 1/4 21 212 180
40 150 36 49 15 1 1/2 21 231 180
50 155 45 61 16 2 25 253 180
