Wafer discharge gate valve Product introduction

Wafer discharge gate valve

Wafer discharge gate valve Technical parameters

Model PN/MPa Pressure test/MPa Temperature:℃ Medium
LXLZ971/71-10C 1.0 1.5 ≤ 400 slag,mine,dust,pulp,etc.
LXLZ971/71-16C 1.6 2.4
LXLZ971/71-25C 2.5 3.8
LXLZ971/71-40C 4.0 6.0

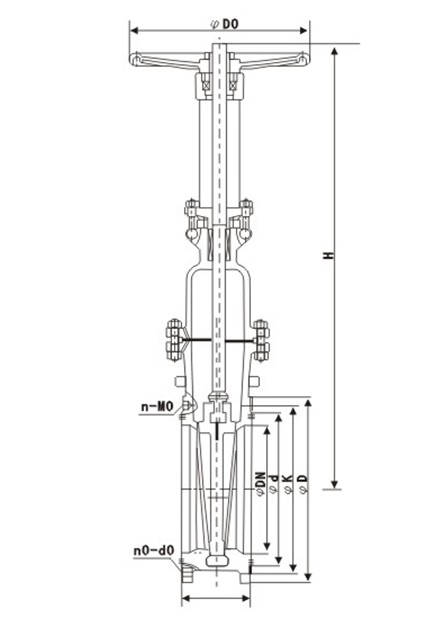

Wafer discharge gate valve Main connection dimensions


Wafer discharge gate valve Main dimension

 PN/MPa  DN/mm L D K d n-d n-M D H
W.H. Electric
16C 50 100 165 125 99 2-φ18 2-φ16 280 320 470
65 100 185 145 118 2-φ18 2-φ16 280 390 560
80 110 200 160 132 4-φ18 4-φ16 280 478 660
100 120 220 180 156 4-φ18 4-φ16 320 549 730
125 130 250 210 184 4-φ20 4-φ16 320 798 925
150 140 280 240 211 4-φ22 4-φ20 320 849 1200
200 150 340 295 266 6-φ26 6-φ24 36O 890 1280
250 150 405 355 319 6-φ26 6-φ24 360 950 1390
300 160 460 410 37O 6-φ26 B-φ24 400 1000 1500
350 180 520 470 429 8-φ26 8-φ24 400 1110 1450
400 210 580 525 480 8-φ30 8-φ27 450 1190 1650
450 230 640 585 548 10-φ30 1O-φ27 560 1260 1800
500 240 715 650 609 1O-φ33 10-φ30 560 1330 1900
2.5 50 100 165 125 99 2-φ18 2-φ16 280 320
65 100 185 145 118 2-φ18 2-φ16 280 390
80 11O 200 160 132 4-φ18 4-φ16 280 478
100 120 235 190 156 4-φ18 4-φ16 320 549
125 130 270 220 184 4-φ20 4-φ16 320 798
150 140 300 250 211 4-φ22 4-φ20 320 840
200 150 360 310 274 6-φ26 6-φ24 360 890
250 150 425 370 330 6-φ26 6-φ24 360 950
300 160 485 430 389 8-φ30 8-φ27 400 1000
350 180 555 490 448 B-φ33 B-φ30 400 1190
400 210 620 550 503 8-φ36 8-φ33 450 1250
450 230 670 600 548 10-φ36 10-φ33 560 1330
500 240 730 660 609 10-φ36 10-φ33 560 1430
4.0 50 100 165 125 99 2-φ16 2-φ16 280 320
65 100 185 145 118 2-φ16 2-φ16 280 390
80 110 200 180 132 4-φ16 4-φ16 280 478
100 120 235 190 156 4-φ20 4-φ20 320 549
125 140 270 220 184 4-φ24 4-φ24 320 798
150 140 300 250 211 4-φ24 4-φ24 360 849
200 140 375 320 284 6-φ30 6-φ27 360 950
250 160 450 385 345 6-φ33 6-φ30 400 1000
300 180 515 450 409 8-φ33 8-φ30 400 1000
350 200 580 510 465 8-φ36 8-φ33 560 1190
400 240 660 585 535 8-φ36 8-φ33 560 1260
450 260 685 670 560 10-φ36 10-φ36 720 1310
500 280 755 670 615 10-φ39 10-φ39 720 1330
