Cast steel globe valve 300Lb Product introduction

Cast steel globe valve 300Lb

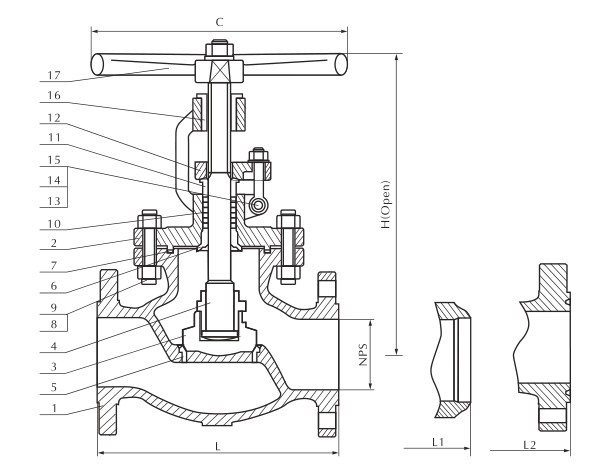

Cast steel globe valve 300Lb Main connection dimensions



Cast steel globe valve 300Lb Main dimension

DN 300Lb (RF)Dimensions(mm) Weight
15 1/2 152 95 66.5 35 14.2 4-16 241 140 7.7
20 3/4 178 117 82.5 43 16 4-19 241 140 11.3
25 1 203 123 89 51 17.5 4-19 283 160 16.8
32 11/4 216 133 98.5 63 19 4-19 320 200 21.2
40 11/2 229 155 114.3 73 20.6 4-22.5 322 200 32.6
50 2 267 165 127 92 22.4 8-19 399 200 25
65 21/2 292 190 149.4 105 25.4 8-22.5 438 250 30
80 3 318 210 168.1 127 28.4 8-22.5 464 280 35
100 4 356 254 200.2 157 31.8 8-22.5 565 350 56
125 5 400 279 235 186 35 8-22.5 614 350 96
150 6 444 318 269.7 216 36.6 12-25.4 717 400 120
200 8 559 381 330.2 270 41.2 12-25.4 930 500 212
250 10 622 444 387.4 324 47.8 16-28.5 1012 550 330
300 12 711 521 450.8 381 50.8 16-32 1231 600 472
350 14 762 584 514.4 413 54 20-32 1450 600 715
400 16 864 648 571.5 470 57.2 20-35 1645 600 920
